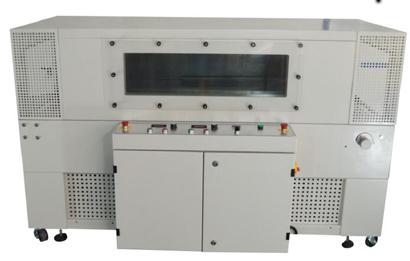

High efficiency energy-saving shrinkage furnace ZF-S450/ZF-S550/ZF-S650/ZF-S800
.jpg)
Basic Use:
Unusual design of hot-air circulation system makes the product more even in the shrinkage process of heating and according to the product shape and size it and adjust the magnitude and direction of the hot air and the wind at the end so that sealing line and sealing angle more fine. Machine adopts special thermal insulation fiber material, with the hot air circulating system, makes the machine greatly reduce power consumption, to the effect of energy-saving and emission reducing. It can also bring economic benefits by using minimum power to achieve the best effect of packaging.
Applicable products：
.jpg)
|
型號(hào) Model No. |
ZF- S400 |
ZF-S450 |
ZF-S550 |
ZF-S650 |
|
ZF-S800 |
|
|
機(jī)器尺寸 Machine Size (mm)L x W x H |
900 x 855 x 1190 |
1700 x 1110 x 1160 |
2000 x 1110 x 1230 |
2200 x 1110 x 1230 |
|
2200×1260×1160 |
|
|
收縮糟尺寸 Shrinkage slot size (mm)L x W x H |
900 x 400 x 200 |
1200 x 440 x 280 |
1500 x 540 x350 |
1700×630×350 |
|
1700×790×280 |
|
|
包裝物尺寸范圍Packing material size L x W x H (mm) |
300(W)×150(H) |
330(W)x230(H) |
430(W)x280(H) |
500(W)x280(H) |
|
650(W)x230(H) |
|
|
電壓Voltage |
380V / 3PH |
380V / 3PH |
380V / 3PH |
380V / 3PH |
|
380V / 3PH |
|
|
耗電 Power consumption (Kw) |
6 KW |
12 KW |
14 KW |
16 KW |
|
18 KW |
|
|
輸送帶速度Conveyor speed (m/min) |
0-30 |
0-35 |
0-35 |
0-35 |
|
0-35 |
|
Product Characteristics：
l Hot air circulation system can reduce the heating time。
l In the furnace thermodynamic cycles continuously and the heat insulation fiber material can effectively reduce the loss of heat; the workshop is not affected by temperature.
l A great deal of power is saved and the efficiency is ensured.
l The hot air direction on the left and right and the air flow at the bottom are adjustable.
The roller conveyor belt can be configured with stainless steel or Teflon conveyor according to the product requirements.
